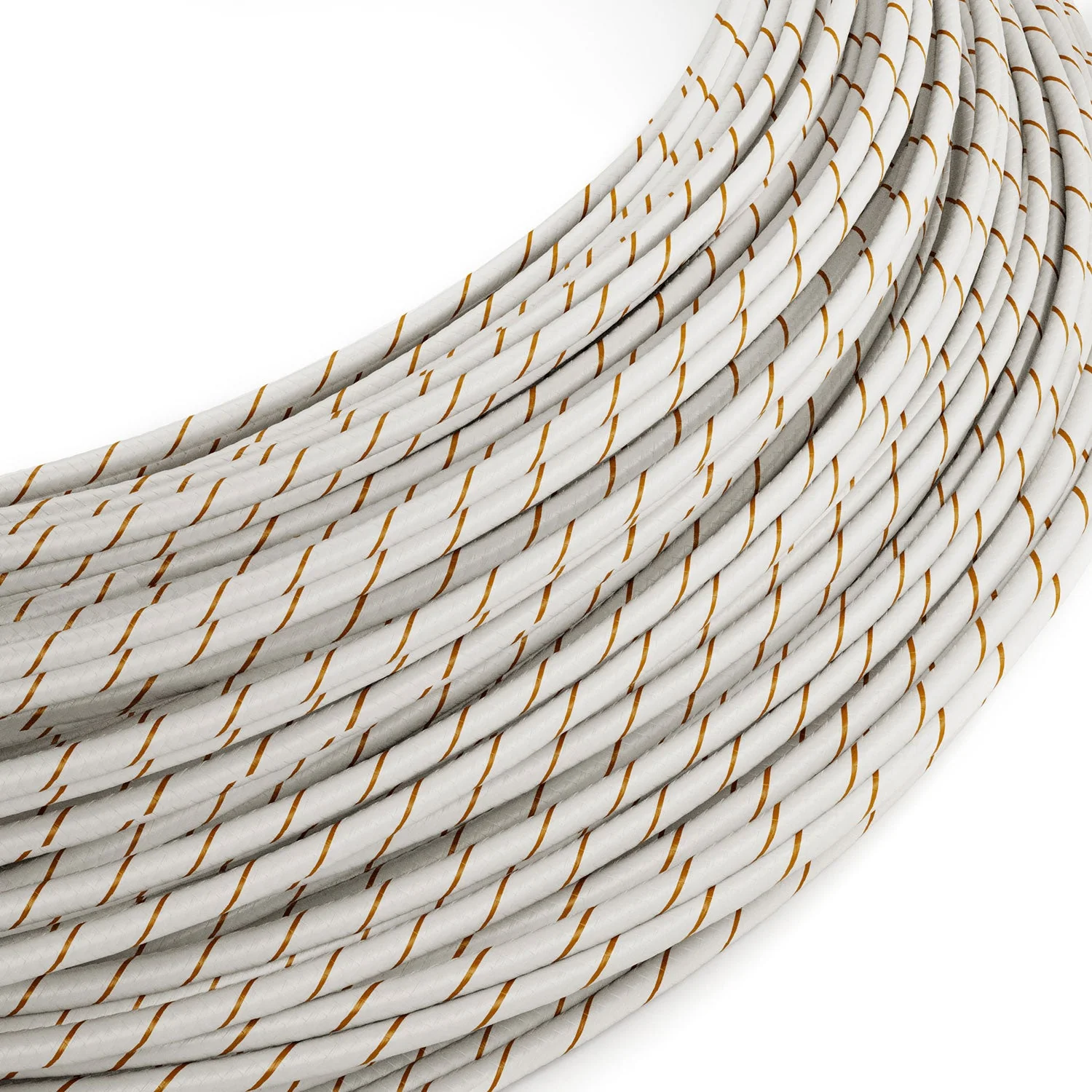

Extra Low Voltage power cable coated in silk effect fabric Vertigo Beer Foam ERM43
The two-pin Extra Low Voltage electrical cable in white extra-flexible silicone is covered in silk effect fabric Vertigo Beer Foam ERM43. The cable is 3.5 mm in diameter (approximately 4 mm covered) and has 2 copper conductors covered in black and red silicone rubber with a cross-section of 0.35 mm2.
The size and structure of the cable make it suitable for LED applications with a voltage of less than 48V. The cable is ideal for movable luminaires (table / floor lamps) in class III and for fixed installations (wall, ceiling and pendant lamps) in class II with a rated current of not more than 2A
WARNING DO NOT USE FOR MAINS VOLTAGE - DO NOT USE FOR HALOGEN LAMPS
Technical specifications:
Flexible bipolar cable insulated with white silicone
External diameter 3.8 mm
2 copper conductors coated with black and red rubber section 0.35mm
Rated voltage 300/500 V
Test voltage 2kV
IEC EN 60228 Class 5
IEC EN 60754-1/2
The cable is sold by the foot.
